LAMINATED GLASS LINE-Laminating glass lines

LAMINATED GLASS LINE

LAMINATED GLASS LINE

main

- Hydraulic loading and undloading tilting table with high payload
- Available: full automatic loading/unloading system by means of robot or gantry loader/unloader
- Fully automatic glass squaring and assembly
- Available: full automatic PVB application, PVB cutting and trimming
- PVB unwinder with overhead structure and up to 24 PVB rolls capability
- Ovens with hybrid heating system by means of infrared lamps (with SCR power regulation) and forced air convection system by means of top and bottom powerful motorfans that blow and recirculate the air through specific designed channels
- Available: shuttle system for automatic loading/unloading of the autoclave racks


Glass width

Glass length

2.600 mm

3.600/4.500/5.100 mm

2.800 mm

5.100/6.000 mm

3.300 mm

6.000/8.000/12.000 mm


Configuration

Available

Straight line configuration

√

U shape configuration

√

Z shape configuration

√

L shape configuration

√
Loading Tilting Table
Heavy glass unloading capacity by means of hydraulic tilting system
Horizontal washer
6/8 brushes with low e.capability - Motorized opening
Automatic glass squaring
Very accurate also for shape glass
Automatic PVB laying system
High speed bridge - Automatic cross cutting after PVB application
Overhead PVB unwinder
Platform for PVB roll change and maintenance
Automatic glass assembly
Suction cups transfer for automatic glass assembly with shape glass capability
Trimming conveyor
Narrow conveyor with telescopic width adjustment system
Trimming conveyor
Pop up system with caster rollers for easy PVB trimming
Automatic PVB trimming system
no. 4 motorized cutting heads with automatic adjustment and positioning
Nip roll
Heavy frame
Multilayer lamination
High pressing power
Multilayer lamination
Ovens with forced air convection system
Press with motors and servodrive control
Accurate system for uniform pressing with shape glass
Unloading tilting table
Heavy glass unloading capacity by means of hydraulic tilting system
Automatic gantry loader/unloader
Tilting table with motorized arms
Autoclave rack shuttle
Motorized shuttle for automatic loading of the rack into the autoclave


Didascalia

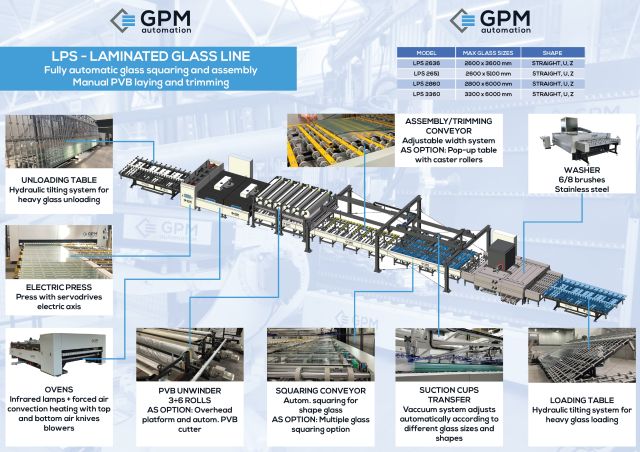

LPS LAMINATED GLASS LINE - AUTOMATIC GLASS SQUARING AND ASSEMBLY PROCESS




Didascalia

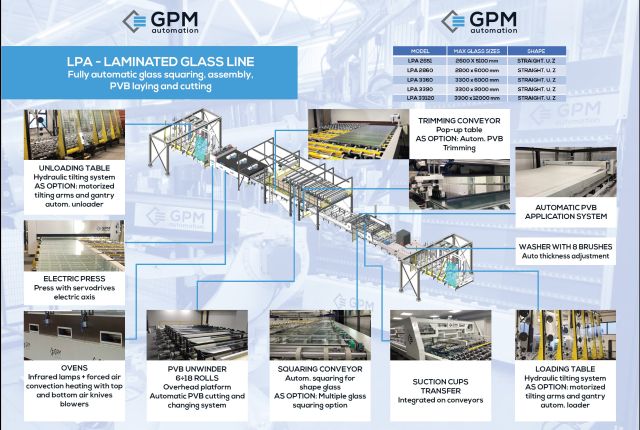

LPA LAMINATED GLASS LINE - FULLY AUTOMATIC GLASS SQUARING AND ASSEMBLY PROCESS
